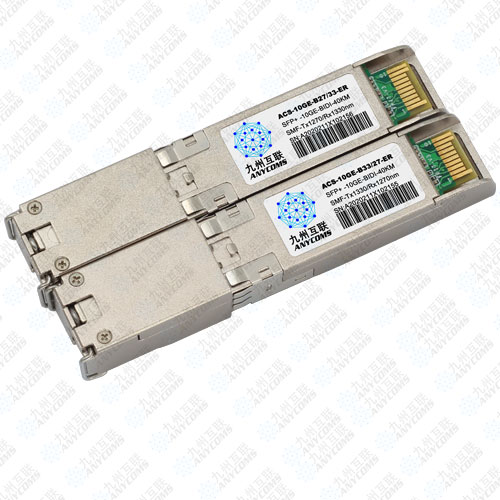

10Gb/s SFP+ BIDI 40KM Optical Transceiver Module

Product description: ACS-10GE-B2733-ER/ACS-10GE-B3327-ER transceiver is designed for use in 10-Gigabit Ethernet links up to 40km over single mode fiber. The module consists of CWDM DFB Laser, PIN and Preamplifier in a hig
INQUIRY EMAIL

Features

l Up to 11.1Gb/s data rate

l 1270nm DFB laser and PIN receiver for ACS-10GE-B2733-ER

l 1330nm DFB laser and PIN receiver for ACS-10GE-B3327-ER

l 2-wire interface with integrated Digital Diagnostic monitoring

l Up to 40km transmission on SMF

l BIDI LC optical connector

l Single +3.3V power supply

l Metal enclosure, for lower EMI

l Maximum power consumption 1.5W

l RoHS-6 compliant and lead-free

l SFF-8472 MSA compliant &SFF-8431

l Operating case temperature

Commercial: 0 ~ 70oC

Optical Characteristics

The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Parameter	Symbol	Min.	Typical	Max	Unit	Notes
Transmitter
Center Wavelength	λ_C	1260	1270	1280	nm
Center Wavelength	λ_C	1320	1330	1340	nm
Optical Spectral Width	∆λ			1	nm
Side Mode Suppression Ratio	SMSR	30			dB
Average Optical Power	P_AVG	0		5	dBm
Optical Extinction Ratio	ER	3.5			dB
Average Launched Power(Laser Off)	Poff			-30	dBm
Transmitter Eye Mask	Compliant with IEEE802.3ae

Parameter	Symbol	Min.	Typical	Max	Unit	Notes
Receiver
Center Wavelength	λ_C	1320	1330	1340	nm
Center Wavelength	λ_C	1260	1270	1280	nm
Receiver Sensitivity (Average Power)	Sen.			-15	dBm	1
Input Saturation Power (overload)	Psat	0.5			dBm
LOS Assert	LOSA	-30			dBm
LOS De-assert	LOSD			-17	dBm
LOS Hysteresis	LOSH	0.5			dB

Notes:

1. Measured with Light source 1270nm @1330nm, ER=3.5dB; BER =<10^-12 @10.3125Gbps, PRBS=2^31-1 NRZ.
Ordering Information
