Features
l Up to 11.3Gb/s data links
l CWDM EML transmitter and PIN receiver
l with CDR supported 9.95 to 11.3Gb/s reference-free
l Up to 40km on 9/125µm SMF
l Hot-pluggable SFP+ footprint
l Duplex LC/UPC type pluggable optical interface
l Metal enclosure, for lower EMI
l RoHS compliant and lead-free
l Support Digital Diagnostic Monitoring interface
l Single +3.3V power supply
l Maximum power consumption 1.8W
l Compliant with SFF+MSA and SFF8472
l Case operating temperature
Commercial: 0 ~ +70 oC
Industrial: -40 ~ +85 oC
Optical Characteristics
The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.|
Parameter |
Symbol |
Min. |
Typical |
Max |
Unit |
Notes |
|
Transmitter |
||||||
|
Center Wavelength |
λC |
λ-6.5 |
|
λ+6.5 |
nm |
1 |
|
Optical Spectral Width |
∆λ |
|
|
1 |
nm |
|
|
Side Mode Suppression Ratio |
SMSR |
30 |
|
|
dB |
|
|
Average Optical Power |
PAVG |
-1 |
|
3 |
dBm |
2 |
|
Optical Extinction Ratio |
ER |
6 |
|
|
dB |
|
|
Transmitter and Dispersion Penalty |
TDP |
|
|
3.0 |
dB |
|
|
Transmitter OFF Output Power |
Poff |
|
|
-30 |
dBm |
|
|
Transmitter Eye Mask |
Compliant with IEEE802.3ae |
|||||
|
Parameter |
Symbol |
Min. |
Typical |
Max |
Unit |
Notes |
|
Receiver |
||||||
|
Center Wavelength |
λC |
1270 |
|
1610 |
nm |
|
|
Receiver Sensitivity (Average Power) |
Sen. |
|
|
-16 |
dBm |
3 |
|
Input Saturation Power (overload) |
Psat |
0.5 |
|
|
dBm |
|
|
LOS Assert |
LOSA |
-30 |
|
|
dBm |
|
|
LOS De-assert |
LOSD |
|
|
-19 |
dBm |
|
|
LOS Hysteresis |
LOSH |
0.5 |
|
|
dB |
|
1. λ refer to wavelength selection, 1470~1610nm please the “product selection.
2. Class 1 Laser Safety per FDA/CDRH and IEC-825-1 regulations.
3. Measured with Light source 1470~1610nm, ER=6.0dB; BER =<10^-12 @10.3125Gbps, PRBS=2^31-1 NRZ.
Wavelength Selection: CWDM λ Wavelength Guide Pin Descriptions|
Wavelength |
Clasp Color Code |
Wavelength |
Clasp Color Code |
|
1470 nm |
Gray |
1550 nm |
Yellow |
|
1490 nm |
Purple |
1570 nm |
Orange |
|
1510 nm |
Blue |
1590 nm |
Red |
|
1530 nm |
Green |
1610 nm |
Brown |
|
Part Number |
Data Rate (Gb/s) |
Wavelength (nm) |
Transmission Distance(km) |
Temperature (oC) (Operating Case) |
|

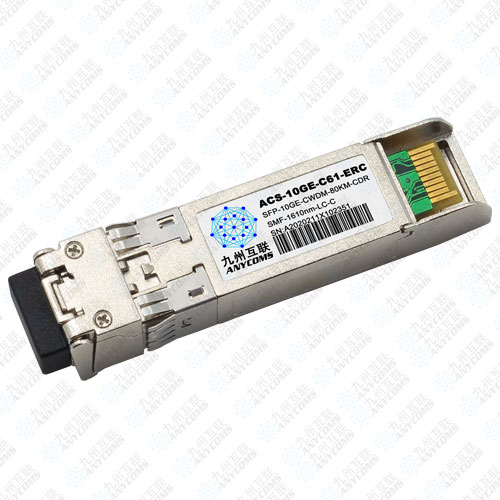

ACS-10GE-Cxxxx-ERC |
10.3125 |
Refer to wavelength selection |
40km SMF |
0~70 commercial |
|
ACS-10GE-Cxxxx-ERIC |
10.3125 |
40km SMF |
-40~80 Extended |
