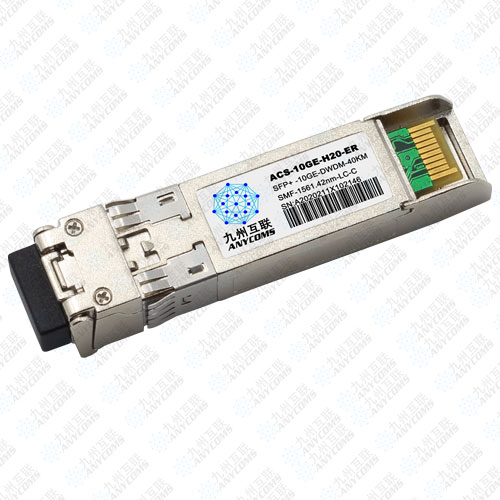

10Gb/s SFP+ DWDM 40KM Optical Transceiver Module(100GHZ)

Product description: ACS-10GE-DWDM-Cxx-ER transceiver is designed for use in 10-Gigabit Ethernet links up to 40km over single mode fiber. The module consists of DWDM EML Laser, PIN and Preamplifier in a high-integrated op
INQUIRY EMAIL

Features

l Up to 11.3Gb/s data links

l DWDM EML transmitter and PIN receiver

l 100 GHz ITU channel spacing with integrated wavelength locker

l Up to 40km on 9/125µm SMF

l Hot-pluggable SFP+ footprint

l Duplex LC/UPC type pluggable optical interface

l Metal enclosure, for lower EMI

l RoHS compliant and lead-free

l Support Digital Diagnostic Monitoring interface

l Single +3.3V power supply

l Maximum power consumption 1.5W

l Compliant with SFF+MSA and SFF8472

l Case operating temperature

Commercial: 0 ~ +70oC

Industrial: -40 ~ +85oC

Optical Characteristics

The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Parameter	Symbol	Min.	Typical	Max	Unit	Notes
Transmitter
Optical Wavelength	λc	λc -0.1		λc +0.1	nm	1
Center Wavelength Spacing			100		GHz
Optical Spectral Width	∆λ			1	nm
Side Mode Suppression Ratio	SMSR	30			dB
Average Optical Power	P_AVG	-1		3	dBm	2
Optical Extinction Ratio	ER	6			dB
Transmitter and Dispersion Penalty	TDP			3	dB
Transmitter OFF Output Power	POff			-30	dBm
Transmitter Eye Mask		Compliant with IEEE802.3ae

Parameter	Symbol	Min.	Typical	Max	Unit	Notes
Receiver
Center Wavelength	λ_C	1270		1610	nm
Receiver Sensitivity (Average Power)	Sen.			-15.8	dBm	3
Input Saturation Power (overload)	Psat	0.5			dBm
LOS Assert	LOSA	-28			dB
LOS De-assert	LOSD			-19	dBm
LOS Hysteresis	LOSH	0.5			dBm

Notes:

1. λc refer to wavelength selection, and corresponds to approximately 0.8 nm.

2. Class 1 Laser Safety per FDA/CDRH and IEC-825-1 regulations.

3. Measured with Light source 1528.77~1563.86nm, ER=6.0dB; BER =<10^-12 @10.3125Gbps, PRBS=2^31-1 NRZ.

Wavelength Selection: C-band λc Wavelength Guide Pin Descriptions

Ordering Information

Part Number	Data Rate (Gb/s)	Wavelength (nm)	Transmission Distance(km)	Temperature (^oC)
ACS-10GE-DWDM-Cxx-ER	10.3125	Refer to wavelength selection	40KM SMF	0~70 commercial
ACS-10GE-DWDM-Cxx-ERI	10.3125	Refer to wavelength selection	40KM SMF	-40~85 Industrial
