10Gb/s XFP 1550nm 80KM Optical Transceiver Module

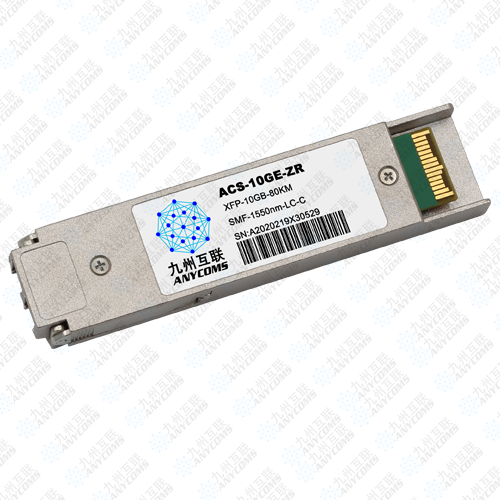

Product description: ACS-10GE-ZR transceiver is designed for use in 10-Gigabit Ethernet links up to 80km over single mode fiber. The module consists of 1550 EML Laser, APD and Preamplifier in a high-integrated optical sub
INQUIRY EMAIL

Features

l Supports 9.95Gb/s to 11.3Gb/s bit rates

l 1550nm EML transmitter and APD receiver

l Up to 80km on 9/125µm SMF

l Hot-pluggable XFP footprint

l Duplex LC/UPC type pluggable optical interface

l Metal enclosure, for lower EMI

l RoHS compliant and lead-free

l Support Digital Diagnostic Monitoring interface

l Single +3.3V power supply

l Maximum power consumption 3.5W

l No Reference Clock required

l Case operating temperature

Commercial: 0 ~ +70oC

Extended: -10 ~ +80oC

Industrial: -40 ~ +85oC

Optical Characteristics

The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Parameter	Symbol	Min.	Typical	Max		Unit	Notes
Transmitter
Center Wavelength	λ_C	1530	1550		1570	nm	1
Optical Spectral Width	∆λ				1	nm
Side mode Suppression ratio	SMSR	30				dB
Average Optical Power	P_AVG	0			5	dBm
Optical Extinction Ratio	ER	9				dB
Transmitter and Dispersion Penalty	TDP				3.0	dB
Average Launch power of OFF transmitter	P_OFF				-30	dBm
Transmitter Eye Mask	Compliant with IEEE802.3ae

Parameter	Symbol	Min.	Typical	Max		Unit	Notes
Receiver
Center Wavelength	λ_C	1270			1610	nm
Receiver Sensitivity (Average Power)	Sen.				-24	dBm	2
Input Saturation Power (overload)	Psat	-6				dBm
LOS Assert	LOSA	-37				dBm
LOS De-assert	LOSD				-27	dBm
Receiver Reflectance	Rrx				-27	dBm
LOS Hysteresis	LOSH	0.5				dB
