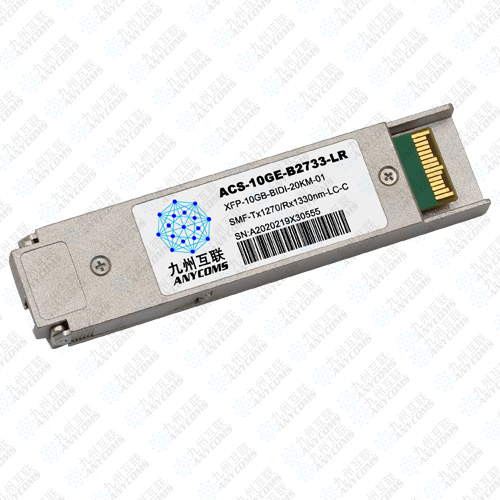

10Gb/s XFP BIDI 10KM Optical Transceiver Module

Product description: ACS-10GE-B2733-LR/JZ-XF-10GE-B3327-LR transceiver is designed for use in 10-Gigabit Ethernet links up to 10km over single mode fiber. The module consists of DFB Laser, PIN and Preamplifier in a high-i
INQUIRY EMAIL

Features

l Supports 9.95Gb/s to 11.3Gb/s bit rates

l 1270nm DFB laser and PIN receiver

l 1330nm DFB laser and PIN receiver

l Up to 10km on 9/125µm SMF

l Hot-pluggable XFP footprint

l Duplex LC/UPC type pluggable optical interface

l Metal enclosure, for lower EMI

l RoHS compliant and lead-free

l Support Digital Diagnostic Monitoring interface

l Single +3.3V power supply

l Maximum power consumption 2.0W

l No Reference Clock required

l Case operating temperature

Commercial: 0 ~ +70oC

Industrial: -40 ~ +85oC

Optical Characteristics

The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Parameter	Symbol	Min.	Typical	Max	Unit	Notes
Transmitter
Center Wavelength	λ_C	1260	1270	1280	nm	XFP-B273396LR
Center Wavelength	λ_C	1320	1330	1340	nm	XFP-B332796LR
Optical Spectral Width	∆λ			1	nm
Side Mode Suppression Ratio	SMSR	30			dB
Average Optical Power	P_AVG	-5		0	dBm
Optical Extinction Ratio	ER	3.5			dB
Average Launched Power(Laser Off)	Poff			-30	dBm
Transmitter Eye Mask	Compliant with IEEE802.3ae

Parameter	Symbol	Min.	Typical	Max	Unit	Notes
Receiver
Center Wavelength	λ_C	1320	1330	1340	nm	XFP-B332796LR
Center Wavelength	λ_C	1260	1270	1280	nm	XFP-B273396LR
Receiver Sensitivity (Average Power)	Sen.			-15	dBm	2
Input Saturation Power (overload)	Psat	0.5			dBm
LOS Assert	LOSA	-32			dBm
LOS De-assert	LOSD			-17	dBm
LOS Hysteresis	LOSH	0.5			dB

Notes:

1. Average power figures are informative only, per IEEE 802.3ae.

2. Measured with Light source 1270nm and 1330nm, ER=3.5dB; BER =<10^-12 @10.3125Gbps, PRBS=2^31-1 NRZ.
Ordering Information

Part Number	Data Rate (Gb/s)	Wavelength (nm)	Transmission Distance(km)	Temperature (^oC) (Operating Case)
ACS-10GE-B2733-LR	10.3125	1270	10km SMF	0~70 commercial
ACS-10GE-B3327-LR	10.3125	1330	10km SMF	0~70 commercial
