Features
l Supports 9.95Gb/s to 11.3Gb/s bit rates
l CWDM EML transmitter and PIN receiver
l Up to 40km on 9/125µm SMF
l Hot-pluggable XFP footprint
l Supports Lineside and XFI loopback
l Duplex LC/UPC type pluggable optical interface
l Metal enclosure, for lower EMI
l RoHS compliant and lead-free
l Single +3.3V power supply
l Support Digital Diagnostic Monitoring interface
l No Reference Clock required
l Power dissipation <3.5W
l Case operating temperature
Commercial: 0 ~ +70oC
Extended: -10 ~ +80oC
Industrial: -40 ~ +85oC
Optical Characteristics
The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.|
Parameter |
Symbol |
Min. |
Typical |
Max |
Unit |
Notes |
|
|
Transmitter |
|||||||
|
Optical Wavelength |
λ |
λ -6.5 |
|
λ -6.5 |
nm |
1 |
|
|
Optical Spectral Width |
∆λ |
|
|
1 |
nm |
|
|
|
Side mode Suppression ratio |
SMSR |
30 |
|
|
dB |
|
|
|
Average Optical Power |
PAVG |
-1 |
|
4 |
dBm |
|
|
|
Optical Extinction Ratio |
ER |
8.2 |
|
|
dB |
|
|
|
Transmitter and Dispersion Penalty |
TDP |
|
|
2 |
dB |
|
|
|
Average Launch power of OFF transmitter |
POFF |
|
|
-30 |
dBm |
|
|
|
Transmitter Eye Mask |
Compliant with IEEE802.3ae |
|
|||||
|
Parameter |
Symbol |
Min. |
Typical |
Max |
Unit |
Notes |
|
|
Receiver |
|||||||
|
Center Wavelength |
λC |
1270 |
|
1610 |
nm |
|
|
|
Receiver Sensitivity (Average Power) |
Sen. |
|
|
-16.5 |
dBm |
2 |
|
|
Input Saturation Power (overload) |
Psat |
0.5 |
|
|
dBm |
|
|
|
LOS Assert |
LOSA |
-32 |
|
|
dBm |
|
|
|
LOS De-assert |
LOSD |
|
|
-18 |
dBm |
|
|
|
LOS Hysteresis |
LOSH |
0.5 |
|
|
dB |
|
|
Notes:
1. “λ” is:1470，1490，1510，1530，1550，1570，1590，1610， please the “product selection”.
2. Measured with Light source 1x0nm, ER=8.2dB; BER =<10^-12 @10.3125Gbps, PRBS=2^31-1 NRZ.|
Wavelength |
Clasp Color Code |
Wavelength |
Clasp Color Code |
|
1470 nm |
Gray |
1550 nm |
Yellow |
|
1490 nm |
Purple |
1570 nm |
Orange |
|
1510 nm |
Blue |
1590 nm |
Red |
|
1530 nm |
Green |
1610 nm |
Brown |
|
Part Number |
Data Rate (Gb/s) |
Wavelength (nm) |
Transmission Distance (km) |
Temperature (oC) (Operating Case) |
|

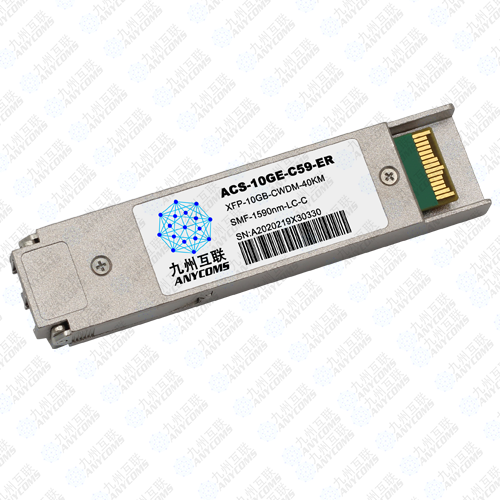

ACS-10GE-Cxxxx-ER |
10.3125 |
Refer to wavelength selection |
40km SMF |
0~70 commercial |
|
ACS-10GE-Cxxxx-ERI |
10.3125 |
40km SMF |
-40~85 Industrial |
