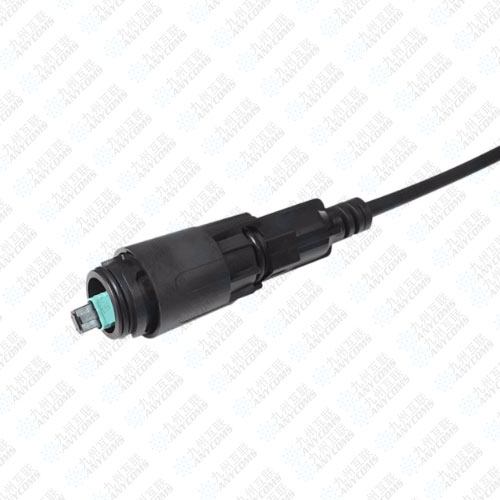

Features
l Cost effective solution for in house termination.
l Low insertion loss and added loss.
l Low insertion loss and added loss.
l Height of attenuation.
l IP67 water, dust proof and corrosion resistant
l Plug has tolerance free design, free floating on Z-axis.
l The material in the jumpel cable are all-weather and UV-resistant.
l Mechanical performance: IEC 61754-7 standard.
l RoHS and REACH materials compliant.
l 100% Compatible with FullAXS Connectors and has site tehnical features.
Applications
l Multi-purpose Outdoor.
l For connection between distribution box and RRH.
l Deployment in Remote Radio Head cell tower applications.
MTP&MPOOptical Characteristics
|
Item |
Parameter |
Reference |
|||
|
Single mode |
Multi mode |
||||
|
Standard |
Elite |
Standard |
Elite |
||
|
Insertion loss |
Typical≤0.30dB Max≤0.75dB |
Typical≤0.15dB Max≤0.35dB |
Typical≤0.50dB Max≤0.25dB |
Typical≤0.10dB Max≤0.35dB |
IEC 61300-3-34 |
|
Return loss |
≥50dB(UPC) ≥60dB(APC) |
≥55dB(UPC) ≥65dB(APC) |
≥30dB(UPC) |
≥30dB(UPC) |
IEC 61300-3-6 |
|
Item |
Parameter |
Reference |
|
|
Single mode |
Multi mode |
||
|
Insertion loss |
Typical≤0.15dB Max≤0.30dB |
Typical≤0.15dB Max≤0.30dB |
IEC 61300-3-34 |
|
Return loss |
≥50dB(UPC) ≥60dB(APC) |
≥30dB(UPC) |
IEC 61300-3-6 |
|
Test |
Conditions |
Reference |
|
Endurance |
500 matings |
IEC 61300-2-2 |
|
Vibration |
Frequency: 10 to 55Hz, Amplitude: 0.75mm |
IEC 61300-2-1 |
|
Cable retention |
400N (main cable); 50N (connector part) |
IEC 61300-2-4 |
|
Strength of coupling mechanism |
80N for 2 to 3mm cable |
IEC 61300-2-6 |
|
Cable torsion |
15N for 2 to 3mm cable |
IEC 61300-2-5 |
|
Fall |
10 drops, 1m drop height |
IEC 61300-2-12 |
|
Static lateral load |
1N for 1h (main cable); 0.2N for 5min (ranch part) |
IEC 61300-2-42 |
|
Cold |
-25°C, 96h duration |
IEC 61300-2-17 |
|
Dry heat |
+70°C, 96h duration |
IEC 61300-2-18 |
|
Change of temperature |
-25°C to +70°C, 12 cycles |
IEC 61300-2-22 |
|
Humidity |
+40°C at 93%, 96h duration |
IEC 61300-2-19 |
