MCP1650-V0xxEyy 200GbE QSFP56 DAC Product Specifications

Introduction

NVIDIA® MCP1650-V0xxEyy DAC (Direct Attach Copper) cables are high speed, cost-effective alternatives to fiber optics in 200GbE Ethernet applications.

The QSFP56 passive copper cable1 contains eight high-speed copper pairs, each operating at data rates of up to 50Gb/s. Each QSFP56 port comprises an EEPROM providing product information, which can be read by the host system.[

NVIDIA unique-quality cable solutions provide power-efficient connectivity for short distance interconnects. It enables higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.

Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.

Key Features

l Up to 200Gb/s data rate

l 4x 50Gb/s PAM4 modulation

l SFF-8665 compliant

l Operating case temperature 0-70°C

l Single 3.3V supply voltage

l Hot pluggable

l RoHS compliant

l LSZH (Low Smoke Zero Halogen) jacket

l LF (Lead Free) HF (Halogen Free) PCB

l SFF-8636 compliant I2C management interface

Warning

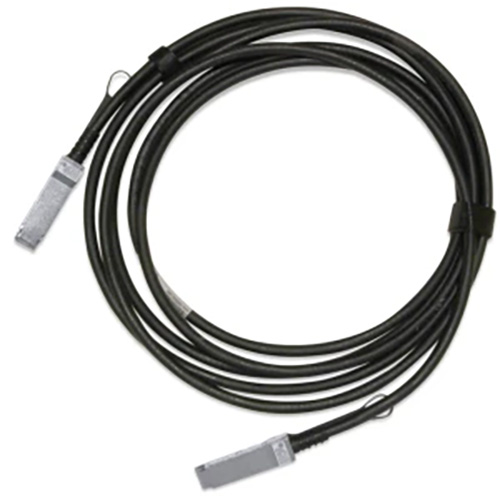

Images are for illustration purposes only. Product labels, colors, and lengths may vary.

---[1] Raw cables are provided from different sources to ensure supply chain robustness.
