DWDM Mux/Demux

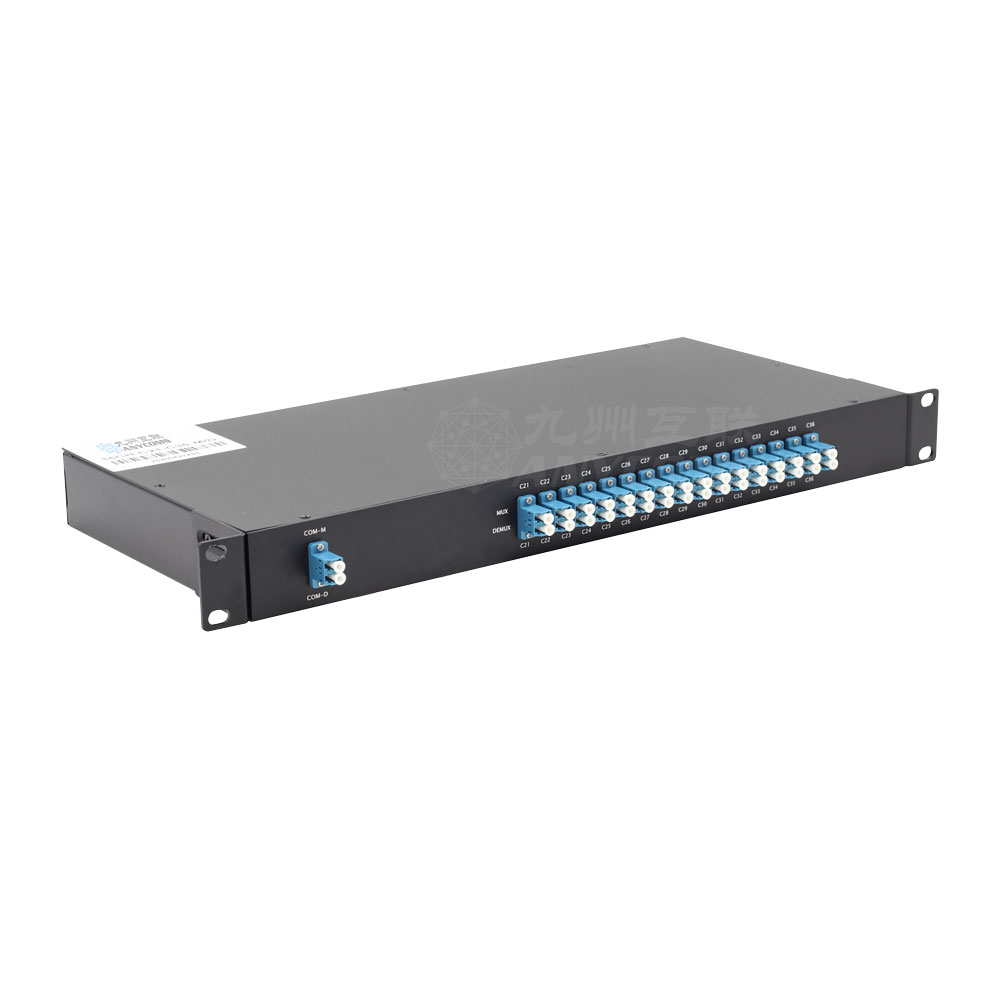

100GHz/200GHz DWDM Module in 1U Rack mount(4,8,16-Channel)

Channel Spacing: 100GHz/200GHz
Number of Channels: 4,8,16 Channel
In/Out Connector: Customized
Multi-Number of Channels: Customized
Product description: Anycoms’ 100GHz/200GHz dense wavelength division multiplexer (DWDM module) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging to achieve opti
INQUIRY EMAIL

Anycoms’ 100GHz dense wavelength division multiplexer (DWDM) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging to achieve optical add and drop at the ITU wavelengths. It provides ITU channel center wavelength, low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path . It can be used for wavelength add/drop in telecommunication network system.

Features

l Low Insertion Loss

l Wide pass band

l High channel

l High stability and reliability

l Epoxy free on optical path

Applications

l Channel Add/Drop

l DWDM network

l Wavelength Routing

l CATV fiber optic System

l Fiber optical amplifier

Performance Specifications

Parameter		4 Channel		8 Channel		16 Channel
		Mux	Demux	Mux	Demux	Mux	Demux
Channel Wavelength(nm)		ITU Grid
Channel Spacing(GHz)		100/200
Channel Passband (@-0.5dB bandwidth)(nm)		>0.3
Insertion Loss(dB)		≤1.8		≤3.0		≤4.5
Channel Uniformity(dB)		≤0.6		≤1.0		≤1.5
Channel Ripple(dB)		0.3
Isolation(dB)	Adjacent	N/A	>30	N/A	>30	N/A	>30
	Non-adjacent	N/A	>40	N/A	>40	N/A	>40
Insertion Loss Temperature Sensitivity(dB/℃)		<0.005
Wavelength Temperature Shifting(nm/℃)		<0.002
Polarization Dependent Loss(dB)		<0.1		<0.1		<0.15
Polarization Mode Dispersion(ps)		<0.1
Directivity(dB)		>50
Return Loss(dB)		>45
Maximum Power Handling(mW)		300
Operating Temperature(℃)		-5~+75
Storage Temperature(℃)		-40~+85
Package dimension(mm)		L432(482.6)×W250×H44 or Specify
