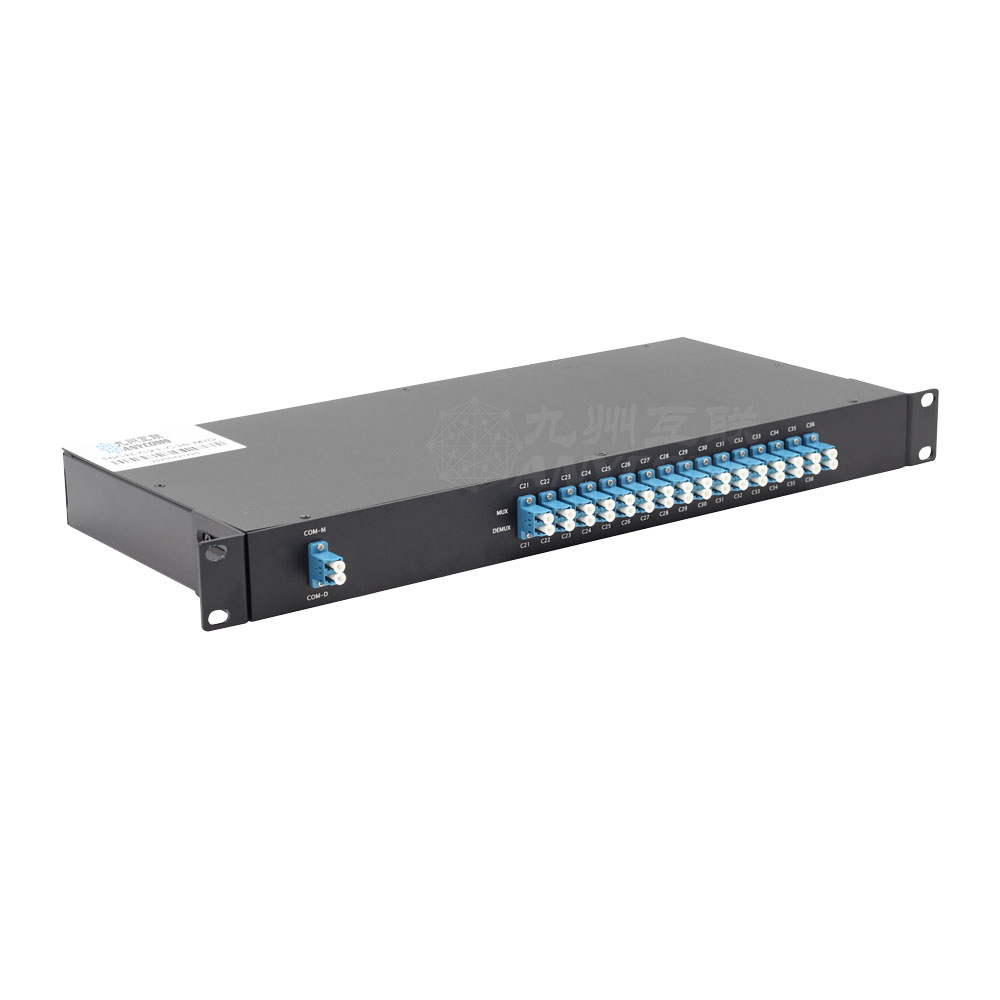

Anycoms’ 100GHz dense wavelength division multiplexer (DWDM) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging to achieve optical add and drop at the ITU wavelengths. It provides ITU channel center wavelength, low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path . It can be used for wavelength add/drop in telecommunication network system.
Features
l Low Insertion Loss
l Wide pass band
l High channel
l High stability and reliability
l Epoxy free on optical path
Applications
l Channel Add/Drop
l DWDM network
l Wavelength Routing
l CATV fiber optic System
l Fiber optical amplifier
Performance Specifications
Parameter
4 Channel
8 Channel
16 Channel
Mux
Demux
Mux
Demux
Mux
Demux
Channel Wavelength(nm)
ITU 100GHz Grid
Channel Spacing(GHz)
100
Channel Passband (@-0.5dB bandwidth)(nm)
>0.25
Insertion Loss(dB)
≤1.8
≤3.7
≤5.5
Channel Uniformity(dB)
≤0.6
≤1.0
≤1.5
Channel Ripple(dB)
<0.3
Isolation(dB)
Adjacent
N/A
>30
N/A
>30
N/A
>30
Non-adjacent
N/A
>40
N/A
>40
N/A
>40
Insertion Loss Temperature Sensitivity(dB/℃)
<0.005
Wavelength Temperature Shifting(nm/℃)
<0.002
Polarization Dependent Loss(dB)
<0.1
<0.1
<0.15
Polarization Mode Dispersion(ps)
<0.1
Directivity(dB)
≥50
Return Loss(dB)
≥45
Maximum Power Handling(mW)
300
Operating Temperature(℃)
-5~+75
Storage Temperature(℃)
-40~+85
Package Size(1U Rack mount)(mm)
19" 1U Rack mount(L440×W200×H44)
1, Above specifications are for devices without connector.
2, Specifications may change without notice.
