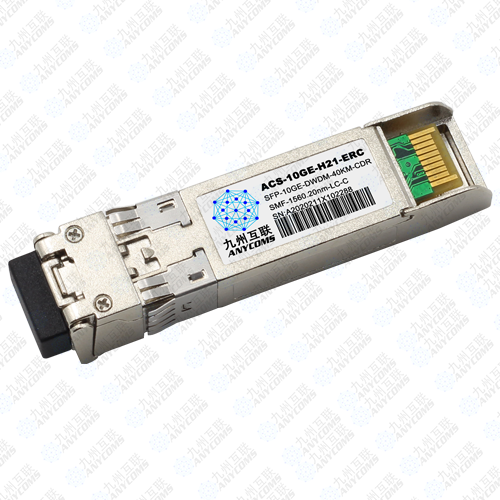

10Gb/s SFP+ DWDM 40KM with CDR Optical Transceiver Module(50GHZ)

Product description: ACS-10GE-DWDM-Hxx-ER-C transceiver is designed for use in 10-Gigabit Ethernet links up to 40km over single mode fiber. The module consists of DWDM EML Laser, PIN and Preamplifier in a high-integrated
INQUIRY EMAIL

Features

l Up to 11.3Gb/s data links

l DWDM EML transmitter and PIN photo-detector

l 50 GHz ITU channel spacing with integrated wavelength locker

l Up to 40km on 9/125µm SMF

l with CDR supported 9.95 to 11.3Gb/s reference-free

l Duplex LC/UPC type pluggable optical interface

l Support Digital Diagnostic Monitoring interface

l Metal enclosure, for lower EMI

l RoHS compliant and lead-free

l Hot-pluggable SFP+ footprint

l Single +3.3V power supply

l Compliant with SFF+MSA and SFF8472

l Case operating temperature

Commercial: 0 ~ +70oC

Industrial: -40 ~ +85oC

Optical Characteristics

The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Parameter	Symbol	Min.	Typical	Max	Unit	Notes
Transmitter
Optical Wavelength	λc	λc -0.05		λc +0.05	nm	1
Center Wavelength Spacing			50		GHz
Optical Spectral Width	∆λ			1	nm
Side Mode Suppression Ratio	SMSR	30			dB
Average Optical Power	P_AVG	-1		+3	dBm	2
Optical Extinction Ratio	ER	6			dB
Transmitter and Dispersion Penalty	TDP			3	dB
Transmitter OFF Output Power	POff			-30	dBm
Transmitter Eye Mask		Compliant with IEEE802.3ae

Parameter	Symbol	Min.	Typical	Max	Unit	Notes
Receiver
Center Wavelength	λ_C	1270		1610	nm
Receiver Sensitivity (Average Power)	Sen.			-16	dBm	3
Input Saturation Power (overload)	Psat	0.5			dBm
LOS Assert	LOSA	-30			dB
LOS De-assert	LOSD			-19	dBm
LOS Hysteresis	LOSH	0.5			dBm

Notes:

1. λc refer to wavelength selection, and corresponds to approximately 0.4 nm

2. Class 1 Laser Safety per FDA/CDRH and IEC-825-1 regulations.

3. Measured with Light source 1528.77~1563.86nm, ER=6.0dB; BER =<10^-12 @10.3125Gbps, PRBS=2^31-1 NRZ.
Wavelength Selection: C-band λc Wavelength Guide Pin

Channel	Wavelength (nm)	Frequency (THZ)	Channel	Wavelength (nm)	Frequency (THZ)
C17	1563.86	191.70	C39	1546.12	193.90
C175	1563.45	191.75	C395	1545.72	193.95
C18	1563.05	191.80	C40	1545.32	194.00
C185	1562.64	191.85	C405	1544.92	194.05
C19	1562.23	191.90	C41	1544.53	194.10
C195	1561.83	191.95	C415	1544.13	194.15
C20	1561.42	192.00	C42	1543.73	194.20
C205	1561.01	192.05	C425	1543.33	194.25
C21	1560.61	192.10	C43	1542.94	194.30
C215	1560.20	192.15	C435	1542.54	194.35
C22	1559.79	192.20	C44	1542.14	194.40
C225	1559.39	192.25	C445	1541.75	194.45
C23	1558.98	192.30	C45	1541.35	194.50
C235	1558.58	192.35	C455	1540.95	194.55
C24	1558.17	192.40	C46	1540.56	194.60
C245	1557.77	192.45	C465	1540.16	194.65

Channel	Wavelength (nm)	Frequency (THZ)	Channel	Wavelength (nm)	Frequency (THZ)
C25	1557.36	192.50	C47	1539.77	194.70
C255	1556.96	192.55	C475	1539.37	194.75
C26	1556.55	192.60	C48	1538.98	194.80
C265	1556.15	192.65	C485	1538.58	194.85
C27	1555.75	192.70	C49	1538.19	194.90
C275	1555.34	192.75	C495	1537.79	194.95
C28	1554.94	192.80	C50	1537.40	195.00
C285	1554.54	192.85	C505	1537.00	195.05
C29	1554.13	192.90	C51	1536.61	195.10
C295	1553.73	192.95	C515	1536.22	195.15
C30	1553.33	193.00	C52	1535.82	195.20
C305	1552.93	193.05	C525	1535.43	195.25
C31	1552.52	193.10	C53	1535.04	195.30
C315	1552.12	193.15	C535	1534.64	195.35

Channel	Wavelength (nm)	Frequency (THZ)	Channel	Wavelength (nm)	Frequency (THZ)
C32	1551.72	193.20	C54	1534.25	195.40
C325	1551.32	193.25	C545	1533.86	195.45
C33	1550.92	193.30	C55	1533.47	195.50
C335	1550.52	193.35	C555	1533.07	195.55
C34	1550.12	193.40	C56	1532.68	195.60
C345	1549.72	193.45	C565	1532.29	195.65
C35	1549.32	193.50	C57	1531.90	195.70
C355	1548.91	193.55	C575	1531.51	195.75
C36	1548.51	193.60	C58	1531.12	195.80
C365	1548.11	193.65	C585	1530.72	195.85
C37	1547.72	193.70	C59	1530.33	195.90
C375	1547.32	193.75	C595	1529.94	195.95
C38	1546.92	193.80	C60	1529.56	196.00
C385	1546.52	193.85	C605	1529.16	196.05
Non-ITU	Peak wavelength between 1528.77nm-1563.86		C61	1528.77	196.10
