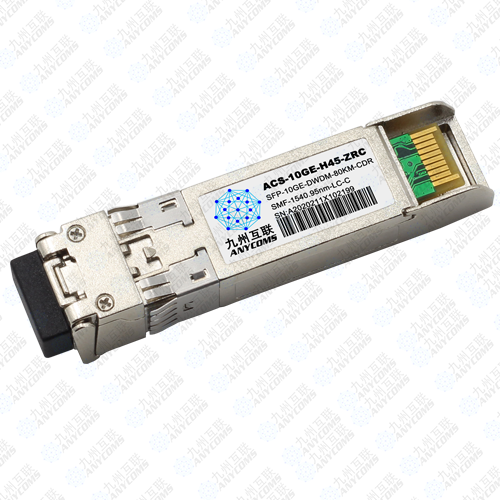

Features
l Up to 11.3Gb/s data links
l DWDM EML transmitter and APD photo-detector
l 50 GHz ITU channel spacing with integrated wavelength locker
l Up to 80km on 9/125µm SMF
l with CDR supported 9.95 to 11.3Gb/s reference-free
l Duplex LC/UPC type pluggable optical interface
l Support Digital Diagnostic Monitoring interface
l Metal enclosure, for lower EMI
l RoHS compliant and lead-free
l Hot-pluggable SFP+ footprint
l Single +3.3V power supply
l Compliant with SFF+MSA and SFF8472
l Case operating temperature
Commercial: 0 ~ +70oC
Industrial: -40 ~ +85oC
Optical Characteristics
The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.|
Parameter |
Symbol |
Min. |
Typ. |
Max |
Unit |
Notes |
|
Transmitter |
||||||
|
Optical Wavelength |
λc |
λc -0.05 |
|
λc +0.05 |
nm |
1 |
|
Center Wavelength Spacing |
|
|
50 |
|
GHz |
|
|
Optical Spectral Width |
∆λ |
|
|
1 |
nm |
|
|
Side Mode Suppression Ratio |
SMSR |
30 |
|
|
dB |
|
|
Average Optical Power |
PAVG |
0 |
|
4 |
dBm |
2 |
|
Optical Extinction Ratio |
ER |
6 |
|
|
dB |
|
|
Transmitter and Dispersion Penalty |
TDP |
|
|
3 |
dB |
|
|
Transmitter OFF Output Power |
POff |
|
|
-30 |
dBm |
|
|
Relative Intensity Noise |
RIN |
|
|
-128 |
dB/Hz |
|
|
Transmitter Eye Mask |
|
Compliant with IEEE802.3ae |
|
|||
|
Parameter |
Symbol |
Min. |
Typ. |
Max |
Unit |
Notes |
|
Receiver |
||||||
|
Center Wavelength |
λC |
1480 |
|
1580 |
nm |
|
|
Receiver Sensitivity (Average Power) |
Sen. |
|
|
-24 |
dBm |
3 |
|
Input Saturation Power (overload) |
Psat |
-6 |
|
|
dBm |
|
|
LOS Assert |
LOSA |
-35 |
|
|
dB |
|
|
LOS De-assert |
LOSD |
|
|
-26 |
dBm |
|
|
LOS Hysteresis |
LOSH |
0.5 |
|
|
dBm |
|
1. λc refer to wavelength selection, and corresponds to approximately 0.4 nm
2. Class 1 Laser Safety per FDA/CDRH and IEC-825-1 regulations.
3. Measured with Light source 1528.77~1563.86nm, ER=6.0dB; BER =<10^-12 @10.3125Gbps, PRBS=2^31-1 NRZ.|
Channel |
Wavelength (nm) |
Frequency (THZ) |
Channel |
Wavelength (nm) |
Frequency (THZ) |
|
C17 |
1563.86 |
191.70 |
C39 |
1546.12 |
193.90 |
|
C175 |
1563.45 |
191.75 |
C395 |
1545.72 |
193.95 |
|
C18 |
1563.05 |
191.80 |
C40 |
1545.32 |
194.00 |
|
C185 |
1562.64 |
191.85 |
C405 |
1544.92 |
194.05 |
|
C19 |
1562.23 |
191.90 |
C41 |
1544.53 |
194.10 |
|
C195 |
1561.83 |
191.95 |
C415 |
1544.13 |
194.15 |
|
C20 |
1561.42 |
192.00 |
C42 |
1543.73 |
194.20 |
|
C205 |
1561.01 |
192.05 |
C425 |
1543.33 |
194.25 |
|
C21 |
1560.61 |
192.10 |
C43 |
1542.94 |
194.30 |
|
C215 |
1560.20 |
192.15 |
C435 |
1542.54 |
194.35 |
|
C22 |
1559.79 |
192.20 |
C44 |
1542.14 |
194.40 |
|
C225 |
1559.39 |
192.25 |
C445 |
1541.75 |
194.45 |
|
C23 |
1558.98 |
192.30 |
C45 |
1541.35 |
194.50 |
|
C235 |
1558.58 |
192.35 |
C455 |
1540.95 |
194.55 |
|
C24 |
1558.17 |
192.40 |
C46 |
1540.56 |
194.60 |
|
C245 |
1557.77 |
192.45 |
C465 |
1540.16 |
194.65 |
|
Channel |
Wavelength (nm) |
Frequency (THZ) |
Channel |
Wavelength (nm) |
Frequency (THZ) |
|
C25 |
1557.36 |
192.50 |
C47 |
1539.77 |
194.70 |
|
C255 |
1556.96 |
192.55 |
C475 |
1539.37 |
194.75 |
|
C26 |
1556.55 |
192.60 |
C48 |
1538.98 |
194.80 |
|
C265 |
1556.15 |
192.65 |
C485 |
1538.58 |
194.85 |
|
C27 |
1555.75 |
192.70 |
C49 |
1538.19 |
194.90 |
|
C275 |
1555.34 |
192.75 |
C495 |
1537.79 |
194.95 |
|
C28 |
1554.94 |
192.80 |
C50 |
1537.40 |
195.00 |
|
C285 |
1554.54 |
192.85 |
C505 |
1537.00 |
195.05 |
|
C29 |
1554.13 |
192.90 |
C51 |
1536.61 |
195.10 |
|
C295 |
1553.73 |
192.95 |
C515 |
1536.22 |
195.15 |
|
C30 |
1553.33 |
193.00 |
C52 |
1535.82 |
195.20 |
|
C305 |
1552.93 |
193.05 |
C525 |
1535.43 |
195.25 |
|
C31 |
1552.52 |
193.10 |
C53 |
1535.04 |
195.30 |
|
C315 |
1552.12 |
193.15 |
C535 |
1534.64 |
195.35 |
|
Channel |
Wavelength (nm) |
Frequency (THZ) |
Channel |
Wavelength (nm) |
Frequency (THZ) |
|
C32 |
1551.72 |
193.20 |
C54 |
1534.25 |
195.40 |
|
C325 |
1551.32 |
193.25 |
C545 |
1533.86 |
195.45 |
|
C33 |
1550.92 |
193.30 |
C55 |
1533.47 |
195.50 |
|
C335 |
1550.52 |
193.35 |
C555 |
1533.07 |
195.55 |
|
C34 |
1550.12 |
193.40 |
C56 |
1532.68 |
195.60 |
|
C345 |
1549.72 |
193.45 |
C565 |
1532.29 |
195.65 |
|
C35 |
1549.32 |
193.50 |
C57 |
1531.90 |
195.70 |
|
C355 |
1548.91 |
193.55 |
C575 |
1531.51 |
195.75 |
|
C36 |
1548.51 |
193.60 |
C58 |
1531.12 |
195.80 |
|
C365 |
1548.11 |
193.65 |
C585 |
1530.72 |
195.85 |
|
C37 |
1547.72 |
193.70 |
C59 |
1530.33 |
195.90 |
|
C375 |
1547.32 |
193.75 |
C595 |
1529.94 |
195.95 |
|
C38 |
1546.92 |
193.80 |
C60 |
1529.56 |
196.00 |
|
C385 |
1546.52 |
193.85 |
C605 |
1529.16 |
196.05 |
|
Non-ITU |
Peak wavelength between 1528.77nm-1563.86 |
C61 |
1528.77 |
196.10 |
|
|
Part Number |
Data Rate (Gb/s) |
Wavelength (nm) |
Transmission Distance (km) |
Temperature (oC) (Operating Case) |
|
ACS-10GE-DWDM-Hxx-ZR-C |
10.3125 |
Refer to wavelength selection
|
80km SMF |
0~70 commercial |
|
ACS-10GE-DWDM-Hxx-ZR-C |
10.3125 |
80km SMF |
-40~85 Industrial |
