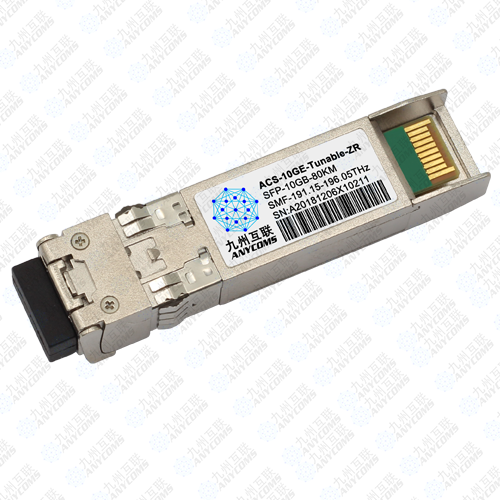

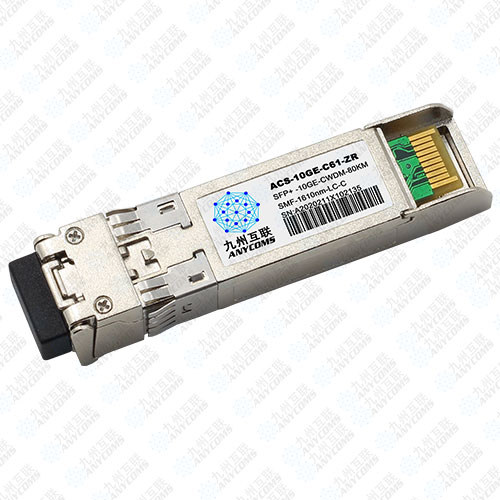

10Gb/s SFP+ DWDM Tunable 80KM Optical Transceiver Module

Product description: ACS-10GE-Tunable-ZR transceiver is an integrated ﬁber optic transceiver that provides a high-speed serial link at signaling rates from 9.95 Gb/s to 11.3 Gb/s. The module complies with the 10 Gigabit E
INQUIRY EMAIL

Features

l Supports 9.95Gb/s to 11.3Gb/s bit rates

l Monolithically integrated full C-band tunable transmitter and APD receiver

l 50 GHz ITU channel spacing with integrated wavelength locker

l Up to 80km on 9/125µm SMF

l Hot-pluggable SFP+ footprint

l Compliant with SFP+ MSA with LC connector

l Metal enclosure, for lower EMI

l RoHS compliant and lead-free

l Support Digital Diagnostic Monitoring interface

l Specifications compliant with SFF-8472 V11.3& SFF-8690 V1.4

l Single +3.3V power supply

l Case operating temperature

Commercial: 0 ~ +70oC

Optical Characteristics

The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Parameter	Symbol	Min.	Typ.	Max	Unit	Notes
Transmitter
Optical Wavelength	λc	λc -0.05		λc +0.05	nm	1
Center Wavelength Spacing			50		GHz
Optical Spectral Width	∆λ			1	nm
Side Mode Suppression Ratio	SMSR	35			dB
Average Optical Power	P_AVG	-1		4	dBm	2
Optical Extinction Ratio	ER	8.2			dB
Transmitter and Dispersion Penalty	TDP			3	dB
Transmitter off Output power	Poff			-30	dBm
Frequency stability (BOL)	-1.5			1.5	GHz
Frequency stability (EOL)	-2.5			2.5	GHz
Transmitter Eye Mask		Compliant with IEEE802.3ae

Parameter	Symbol	Min.	Typ.	Max	Unit	Notes
Receiver
Center Wavelength	λ_C	1270		1610	nm
Receiver Sensitivity( Average power)	Sen.			-23	dBm	3
Input Saturation Power (overload)	Psat	-6			dBm
LOS Assert	LOSA	-36			dB
LOS De-assert	LOSD			-27	dBm
LOS Hysteresis	LOSH	0.5			dBm

Notes:

1. λc refer to wavelength selection, and corresponds to approximately 0.4 nm

2. Class 1 Laser Safety per FDA/CDRH and IEC-825-1 regulations.

3. Measured with Light source 1529.16~1568.36nm, ER=6.0dB; BER =<10^-12 @10.3125Gbps, PRBS=2^31-1 NRZ.

Wavelength Selection: C-band λc Wavelength Guide Pin Descriptions

Channel	Wavelength (nm)	Frequency (THZ)	Channel	Wavelength (nm)	Frequency (THZ)
C06	1568.36	191.15	C55	1548.51	193.60
C07	1567.95	191.20	C56	1548.11	193.65
C08	1567.54	191.25	C57	1547.72	193.70
C09	1567.13	191.30	C58	1547.32	193.75
C10	1566.72	191.35	C59	1546.92	193.80
C11	1566.31	191.40	C60	1546.52	193.85
C12	1565.90	191.45	C61	1546.12	193.90
C13	1565.50	191.50	C62	1545.72	193.95
C14	1565.09	191.55	C63	1545.32	194.00
C15	1564.68	191.60	C64	1544.92	194.05
C16	1564.27	191.65	C65	1544.53	194.10
C17	1563.86	191.70	C66	1544.13	194.15
C18	1563.45	191.75	C67	1543.73	194.20
C19	1563.05	191.80	C68	1543.33	194.25
C20	1562.64	191.85	C69	1542.94	194.30
C21	1562.23	191.90	C70	1542.54	194.35
C22	1561.83	191.95	C71	1542.14	194.40
C23	1561.42	192.00	C72	1541.75	194.45
C24	1561.01	192.05	C73	1541.35	194.50
C25	1560.61	192.10	C74	1540.95	194.55
C26	1560.20	192.15	C75	1540.56	194.60
C27	1559.79	192.20	C76	1540.16	194.65
C28	1559.39	192.25	C77	1539.77	194.70
C29	1558.98	192.30	C78	1539.37	194.75
C30	1558.58	192.35	C79	1538.98	194.80
C31	1558.17	192.40	C80	1538.58	194.85
C32	1557.77	192.45	C81	1538.19	194.90
C33	1557.36	192.50	C82	1537.79	194.95
C34	1556.96	192.55	C83	1537.40	195.00
C35	1556.55	192.60	C84	1537.00	195.05
C36	1556.15	192.65	C85	1536.61	195.10
C37	1555.75	192.70	C86	1536.22	195.15
C38	1555.34	192.75	C87	1535.82	195.20
C39	1554.94	192.80	C88	1535.43	195.25
C40	1554.54	192.85	C89	1535.04	195.30
C41	1554.13	192.90	C90	1534.64	195.35
C42	1553.73	192.95	C91	1534.25	195.40
C43	1553.33	193.00	C92	1533.86	195.45
C44	1552.93	193.05	C93	1533.47	195.50
C45	1552.52	193.10	C94	1533.07	195.55
C46	1552.12	193.15	C95	1532.68	195.60
C47	1551.72	193.20	C96	1532.29	195.65
C48	1551.32	193.25	C97	1531.90	195.70
C49	1550.92	193.30	C98	1531.51	195.75
C50	1550.52	193.35	C99	1531.12	195.80
C51	1550.12	193.40	CA0	1530.72	195.85
C52	1549.72	193.45	CA1	1530.33	195.90
C53	1549.32	193.50	CA2	1529.55	195.95
C54	1548.91	193.55	CA3	1529.55	196.00
Non-ITU	Peak wavelength between 1528.77nm-1563.86		CA4	1529.16	196.05

Notes:

1. When a tunable module is plugged in for the first time, it will go to a default channel, ACS-SF-10GE-Tunable-ZR default channel is 1568.36nm, compatible with channel range from 1 to 99

2. When the module is power cycled it will automatically go to the last channel selected, or when Tx _Disable asserted and then re-enabled, the module returns to the last channel selected.

Ordering Information

Part Number	Data Rate (Gb/s)	Wavelength (nm)	Transmission Distance(m)	Temperature (^oC)
ACS-SF-10GE-Tunable-ZR	10.3125	Refer to wavelength selection	80km SMF	0~70 commercial
