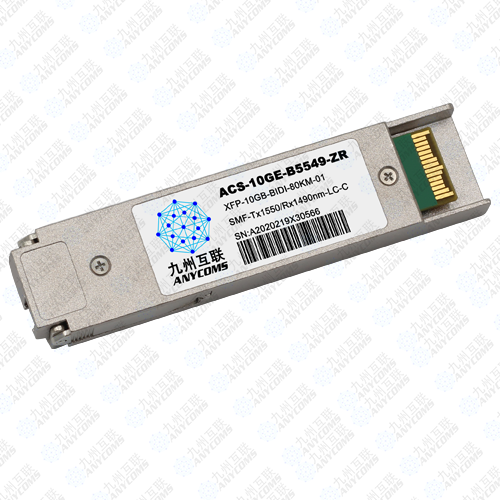

10Gb/s XFP BIDI 80KM Optical Transceiver Module

Product description: ACS-10GE-B4955-ZR/ JZ-XF-10GE-B5549-ZR transceiver is designed for use in 10-Gigabit Ethernet links up to 80km over single mode fiber. The module consists of EML Laser, APD and Preamplifier in a high-
INQUIRY EMAIL

Features

l Supports 9.95Gb/s to 11.3Gb/s bit rates

l 1490nm DFB laser and APD receiver

l 1550nm DFB laser and APD receiver

l Up to 80km on 9/125µm SMF

l Hot-pluggable XFP footprint

l Duplex LC/UPC type pluggable optical interface

l Metal enclosure, for lower EMI

l RoHS compliant and lead-free

l Support Digital Diagnostic Monitoring interface

l Single +3.3V power supply

l Maximum power consumption 2.0W

l No Reference Clock required

l Case operating temperature

Commercial: 0 ~ +70oC

Industrial: -40 ~ +85oC

Optical Characteristics

The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Parameter	Symbol	Min.	Typical	Max	Unit	Notes
Transmitter
Center Wavelength	λ_C	1480	1490	1500	nm
Center Wavelength	λ_C	1540	1550	1560	nm
Optical Spectral Width	∆λ			1	nm
Side Mode Suppression Ratio	SMSR	30			dB
Average Optical Power	P_AVG	0		5	dBm
Optical Extinction Ratio	ER	6.0			dB
Average Launched Power(Laser Off)	Poff			-30	dBm
Transmitter Eye Mask	Compliant with IEEE802.3ae

Parameter	Symbol	Min.	Typical	Max	Unit	Notes
Receiver
Center Wavelength	λ_C	1540	1550	1560	nm
Center Wavelength	λ_C	1480	1490	1500	nm
Receiver Sensitivity (Average Power)	Sen.			-24	dBm	2
Input Saturation Power (overload)	Psat	-6			dBm
LOS Assert	LOSA	-38			dBm
LOS De-assert	LOSD			-25	dBm
LOS Hysteresis	LOSH	0.5			dB

Notes:

1. Average power figures are informative only, per IEEE 802.3ae.

2. Measured with Light source 1490nm and 1550nm, ER=6.0dB; BER =<10^-12 @10.3125Gbps, PRBS=2^31-1 NRZ.
Ordering Information

Part Number	Data Rate (Gb/s)	Wavelength (nm)	Transmission Distance(km)	Temperature (^oC) (Operating Case)
ACS-10GE-B4955-ZR	10.3125	1490	80km SMF	0~70 commercial
ACS-10GE-B5549-ZR	10.3125	1550	80km SMF	0~70 commercial
