MCP1600-C0xxEyyz 100GbE QSFP28 DAC Cable

Introduction

NVIDIA® MCP1600-C0xxEyyz DAC (Direct Attach Copper) cables are high speed, cost-effective alternatives to fiber optics in 100Gb/s Ethernet applications.

The QSFP28 passive copper cable contains four high-speed copper pairs, each operating at data rates of up to 25GbE. Each QSFP28 port comprises an EEPROM providing product information, which can be read by the host system.

The MCP1600 cables up to 2m support IEEE 802.3bj CA-25G-N (Cable Assembly No-FEC) with low latency. Cables from 3m up to 5m support IEEE 802.3bj CA-25G-L (Cable Assembly Long) with RS-FEC (Reed Solomon Forward Error Correction) enabled[1]. For 2.5m and 3m cables, there are two versions supporting either CA-25G-N or CA-25G-L.

NVIDIA unique-quality cable solutions provide power-efficient connectivity for short distance interconnects. It enables higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.

Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.

Key Features

l Up to 100GbE data rate

l SFF-8665 compliant QSFP28

l Operating case temperature 0-70°C

l Single 3.3V supply voltage

l Hot pluggable

l RoHS compliant

l LSZH (Low Smoke Zero Halogen) jacket

l LF (Lead Free) HF (Halogen Free) PCB

l SFF-8636 compliant I²C management interface

Warning

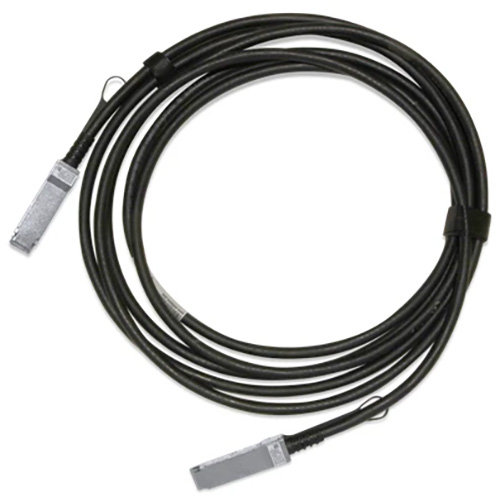

Images are for illustration purposes only. Product labels, colors, and lengths may vary.

Warning

[1] Raw cables are provided from different sources to ensure supply chain robustness.
