MCP1600-E0xxEyy 100Gbs QSFP28 DAC Cable

Introduction

NVIDIA® MCP1600-E0xxxEyy DAC (Direct Attach Copper) cables are high speed, cost-effective alternatives to fiber optics in 100Gb/s InfiniBand EDR applications.

The QSFP28 passive copper cable[1] contains four high-speed copper pairs, each operating at data rates of up to 25Gb/s. Each QSFP28 port comprises an EEPROM providing product information, which can be read by the host system.

NVIDIA unique-quality cable solutions provide power-efficient connectivity for short distance interconnects. It enables higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.

Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.

Key Features

l Up to 100 Gb/s data rate

l SFF-8665 compliant QSFP28

l Operating case temperature 0-70°C

l Single 3.3V supply voltage

l Hot pluggable

l RoHS compliant

l LSZH (Low Smoke Zero Halogen) jacket

l LF (Lead Free) HF (Halogen Free) PCB

l SFF-8636 compliant I2C management interface

Warning

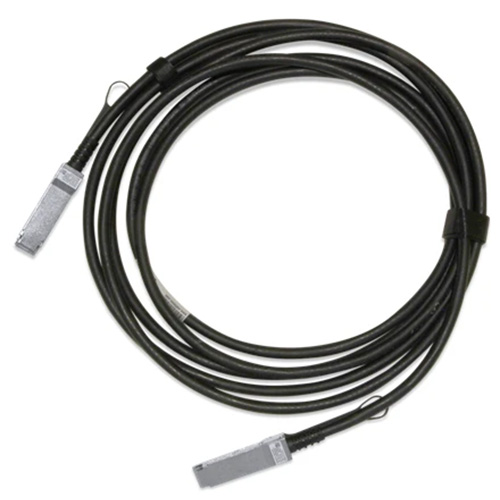

Images are for illustration purposes only. Product labels, colors, and lengths may vary.

Warning

[1] Raw cables are provided from different sources to ensure supply chain robustness.
