MFS1S00-HxxxV 200Gb/s QSFP56 MMF AOC Product Specifications

Introduction

The NVIDIA® MFS1S00 is a QSFP56 VCSEL-based (Vertical Cavity Surface-Emitting Laser) active optical cable (AOC) designed for use in 200Gb/s InfiniBand (IB) HDR (High Data Rate) and 200GbE systems.

The MFS1S00 AOC offers high port density and configurability, and a much longer reach than passive copper cables in the data centers. Since the AOC is hot pluggable, it is easy to install and replace.

The MFS1S00 has a standard SFF-8665 compliant QSFP56 port on the electrical side towards the host system. It contains four multi-mode fibers (MMF) optic transceivers per end, each operating at data rates of up to 50Gb/s.

The MFS1S00 offers selectable retiming per lane for both its optical transmitters and receivers up to 50Gb/s rates.

NVIDIA's unique quality cable solutions provide power-efficient connectivity for data center interconnects. It enables higher port bandwidth, density and configurability at a low cost, and reduced power requirement in the data centers. Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.

Key Features

l Supports IBTA IB HDR and 200GbE

l Up to 200Gb/s

l 4x 50Gb/s PAM4 modulation

l Programmable Rx output amplitude and pre-emphasis

l SFF-8665 compliant QSFP56 port

l Single 3.3V power supply

l 5.0W power consumption (typ., each end, with retiming)

l Up to 100m length

l Hot pluggable

l RoHS compliant

l SFF-8636 compliant I2C management interface

Applications

l Supports 200Gb InfiniBand HDR Systems

l Supports 200 GbE between SN3700 and SN4600 switches

Warning

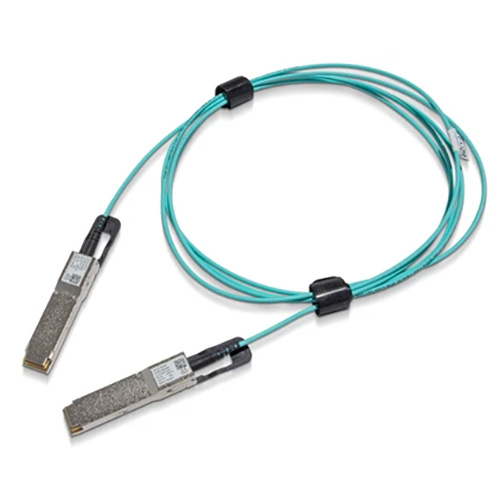

Images are for illustration purposes only. Product labels, colors, and lengths may vary.
