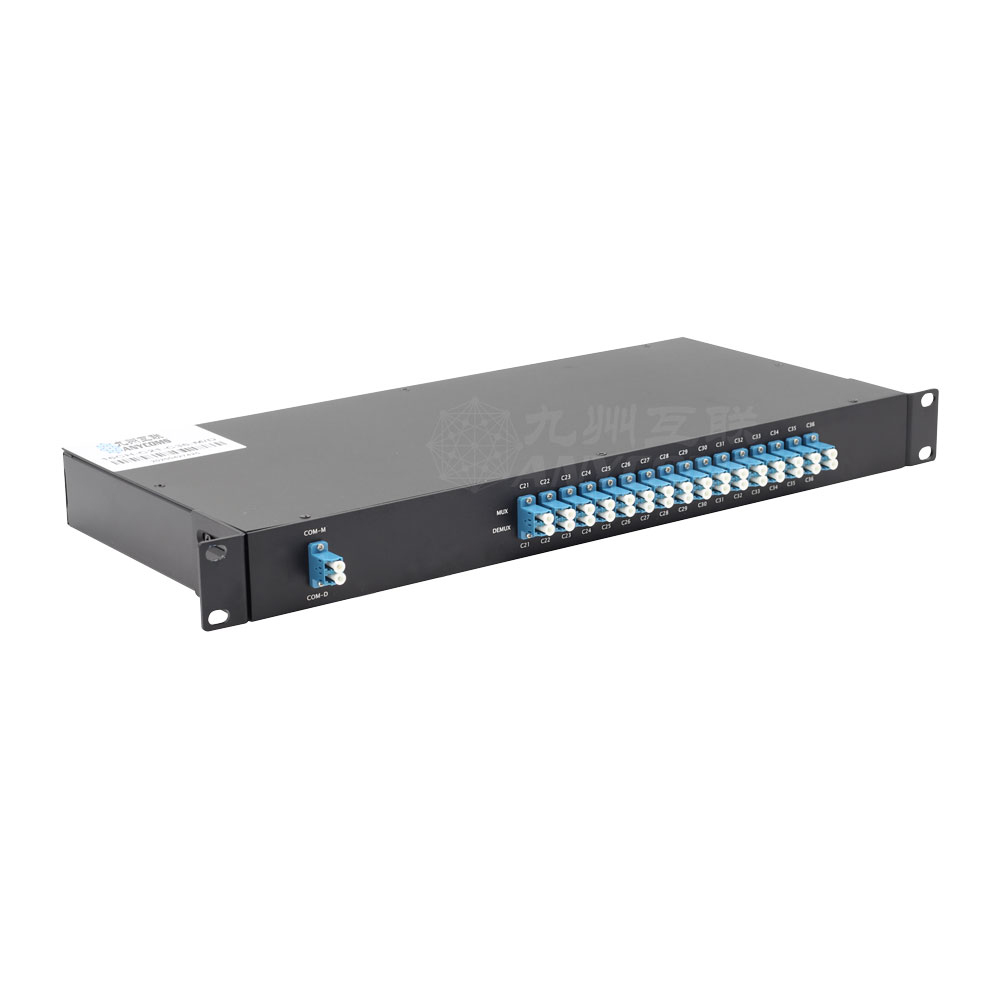

Anycoms 100GHz/200GHz wavelength multiplexer(100,200G DWDM OADM Module) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging to achieve optical add or drop at a ITU wavelength. It provides ITU channel center wavelength, low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path . It can be used for wavelength add/drop in telecommunication network system.
Features
l ITU Channel spacing
l Low Insertion Loss
l Wide pass band
l High channel isolation
l High stability and reliability
l Epoxy free on optical path
l Access Network
Applications
l Channel Add/Drop
l DWDM network
l Wavelength Routing
l CATV fiber optic System
l Fiber optical amplifier
Performance Specifications
Parameter
4 Channel
8 Channel
Add
Drop
Add
Drop
Channel Wavelength(nm)
ITU Grid
Channel Spacing(GHz)
100/200
Channel Passband (@-0.5dB bandwidth)(nm)
>0.22(100G)/ >0.5(200G)
Insertion Loss(dB)
In---Drop@drop
2.0
3.2
Add---Out@add
2.0
3.2
In---Out@other
2.5
5.0
Add/Drop Channel Ripple(dB)
<0.3
Isolation(dB)
Adjacent
N/A
>30
N/A
>30
Non-adjacent
N/A
>40
N/A
>40
Insertion Loss Temperature Sensitivity(dB/℃)
<0.005
Wavelength Temperature Shifting(nm/℃)
<0.002
Polarization Dependent Loss(dB)
<0.1
Polarization Mode Dispersion(ps)
<0.1
Directivity(dB)
>50
Return Loss(dB)
>45
Maximum Power Handling(mW)
300
Operating Temperature(℃)
-10~+75
Storage Temperature(℃)
-40~+85
Package Size(1U Rack mount)(mm)
19" 1U Rack mount (L440×W200×H44)
1, Above specifications are for devices without connector.
2, Specifications may change without notice.
